Solder Paste vs Solder Wire vs Solder Bar: Uas Fits Koj Cov Txheej Txheem PCB?
Solder paste, solder hlau, thiab solder bar yuav siv cov tsev neeg zoo sib xws, tab sis lawv tsis yog cov khoom sib hloov. Txhua daim ntawv yog tsim los xa cov solder rau ib qho kev sib koom ua ke.
- Xaiv solder pasterau stencil printing lossis dispensing ua raws li los ntawm reflow.
- Xaiv cov hlau solderrau tes soldering, PCB rework, lossis robotic point soldering.
- Xaiv solder barrau yoj soldering, dip soldering, xaiv soldering systems nrog lub lauj kaub solder, los yog rov tinning ua hauj lwm.
Qhov kev xaiv zoo tshaj plaws pib nrog cov txheej txheem sib dhos, tsis yog lub npe alloy. Yam khoom, khoom siv, ntim ntau lawm, flux chemistry, kev tu kom huv, thiab kev ua raws li qhov xav tau ces nqaim qhov tshwj xeeb.
Ua ntej, cais daim ntawv Solder, Alloy, thiab Flux
Peb qhov kev txiav txim siab feem ntau sib xyaw ua ke:
- Solder daim ntawvpiav qhia txog yuav ua li cas cov khoom muab thiab xa tuaj: muab tshuaj txhuam, xaim, lossis bar.
- Solder hlaupiav qhia txog cov khoom siv hlau, xws li Sn-Ag-Cu, Sn-Cu, Sn-Bi, lossis Sn-Pb system.
- Flux systemtxiav txim siab tshem tawm oxide, kev them nyiaj yug wetting, residue cwj pwm, thiab kev tu kom huv.
Lub nominal alloy tuaj yeem muaj nyob rau hauv ntau hom, tab sis qhov ntawd tsis ua rau cov khoom lag luam txheej txheem - sib npaug. Yog xav paub ntxiv, saib lubClassification ntawm solder. IPC tseem tshaj tawm cov kev cai tshwj xeeb rausolder pastes nyob rau hauv J-STD-005B, soldering flux nyob rau hauv J-STD-004D, thiabhluav taws xob- qib solder alloys thiab cov khoom solders nyob rau hauv J-STD-006.
Solder Paste vs Solder Wire vs Solder Bar ntawm ib sab
| Solder daim ntawv | Yuav ua li cas nws yog xa | Yam txheej txheem | Flux kev npaj | Kev siv zoo tshaj plaws | Lub ntsiab tswj |
|---|---|---|---|---|---|
| Solder muab tshuaj txhuam | Luam tawm, xa tawm, lossis jetted rau hauv cov ntaub ntawv ua ntej cua sov | SMT reflow thiab localized SMD rework | Flux tsheb yog ib feem ntawm kev muab tshuaj txhuam | Muaj ntau cov kev tswj hwm tso nyiaj thoob plaws PCB | Cia, ntim ntim, luam ntawv zoo, tso, thiab reflow profile |
| Solder hlau | Fed rau hauv ib qho kev sib koom ua ke rhuab | Tes soldering, kho, thiab robotic point soldering | Feem ntau flux-cored; Cov hlau tsis muaj zog yuav xav tau cov flux cais | Siv tau rau tus kheej cov pob qij txha thiab qis - ntim ua haujlwm | Hlau txoj kab uas hla, pub tus nqi, lub ntsis mob, hloov tshav kub, thiab cov txheej txheem |
| Solder bar | Melted nyob rau hauv ib tug solder da dej los yog tshuab reservoir | Wave, dip, thiab solder{0}} txheej txheem lauj kaub | Flux feem ntau siv nyias nyias | High solder- ntim cov txheej txheem thiab rov tinning | Da dej kub, alloy muaj pes tsawg leeg, paug, oxidation, thiab dross |
Thaum xaiv Solder Paste
Solder muab tshuaj txhuammuab cov hmoov txhuam zoo zoo nrog cov flux-raws li tsheb. Nws tso tus nqi tswj hwm ntawm cov khoom siv PCB ua ntej lub rooj sib txoos nkag mus rau cov txheej txheem reflow.
Cov ntawv thov zoo tshaj plaws
Solder paste feem ntau yog qhov kev xaiv zoo tshaj plaws thaum lub rooj tsavxwm muaj ntau qhov chaw -mount cov khoom. Ib lub stencil tuaj yeem tso muab tso rau ntawm ntau cov ntaub qhwv hauv ib lub voj voog luam tawm, tom qab uas cov khoom raug muab tso thiab rov ua dua. Dispensing los yog jetting yuav siv tau rau prototypes, localized deposits, mix-qhov siab yuav tsum tau, los yog designs uas tsis haum cov pa luam yeeb stencil.
Kev siv ib txwm muaj xws li kev tsim SMT, nplua -pitch Cheebtsam sib dhos, hauv qab- tshem tawm cov khoom, cov qauv rov ua dua, thiab xaiv SMD rework. Ib daim ntawv teev cov ncauj lus kom ntxaws ntxiv muaj nyob rau hauv phau ntawv qhiaCov ntawv thov siv cov tshuaj pleev plhu.
Dab tsi los kuaj ua ntej yuav khoom
- Alloy thiab melting ntau yam
- Hom hmoov thiab haum rau qhov tsawg tshaj plaws stencil aperture
- Kev faib tawm ntawm Flux thiab cov khoom seem
- Cov ntsiab lus hlau, viscosity, slump, tack, thiab wetting cov ntaub ntawv
- Pom zoo cia, thawing, ua hauj lwm lub neej, thiab reflow profile
- Compatibility nrog stencil, tshuab luam ntawv, dispensing system, thiab tu txheej txheem
Txoj kev thov tseem ceeb npaum li cov khoom siv. Tshawb xyuas yuav ua li cassiv solder paste kom raugua ntej hloov cov ntawv luam tawm lossis cov chaw faib khoom. Cov ntaub ntawv khaws cia tseem cuam tshuam qhov sib xws, yog li cov khoom tau haissolder paste txee lub neej thiab tuav tej yam kev mobyuav tsum tau kho raws li cov txheej txheem tswj.
Cov kev txwv loj
Paste kev ua tau zoo nyob ntawm ntau dua chemistry. Stencil tsim, aperture tso tawm, luam ntawv sib dhos, tso nyiaj ntim, qhov tseeb qhov chaw, kev txhawb nqa lub rooj tsavxwm, thiab cov thermal profile tuaj yeem cuam tshuam rau qhov tshwm sim. Hauv kev tsim khoom,solder paste soj ntsuamtuaj yeem pab txheeb xyuas cov teeb meem kev tso nyiaj ua ntej cov khoom siv los ntawm kev rov ua dua.
Thaum Yuav Xaiv Cov Hlau Hlau
Cov hlau xaim xaim xaim hlau rau ib qho kev sib koom ua ke ntawm ib lub sijhawm. Qhov ntawd ua rau nws ua tau zoo thaum tus neeg teb xov tooj lossis cov neeg hlau xav tau kev tswj hwm hauv zos es tsis yog kev tso nyiaj ib txhij thoob plaws tag nrho PCB.
Cov ntawv thov zoo tshaj plaws
- Tes soldering ntawm - qhov taub
- Connector, davhlau ya nyob twg, thiab xaim txuas
- PCB kov- nce thiab hloov cov khoom
- Tsawg- ntim lossis cov qauv sib dhos
- Robotic hlau soldering
- Cheebtsam ntsia tom qab lub ntsiab reflow voj voog
Hlau muaj nyob rau hauv txawv diameters, alloys, thiab flux configurations. Lub ntsiab lus ntawmsolder hlau khoom thiab kev sivmuab cov ntsiab lus ntxiv ntawm cov ntaub ntawv solder.
Flux-Cored Wire tsis zoo ib yam li cov hlau ruaj khov
Ntau cov khoom siv hluav taws xob-qib cov xov hlau muaj ib lossis ntau lub hauv paus flux. Cov flux raug tso tawm thaum cov hlau yaj nyob ze ntawm qhov sib koom ua ke. Cov hlau tsis muaj qhov no ua tau - nyob rau hauv kev xa khoom thiab ib txwm xav tau cov tswv yim flux cais.
Txawm tias flux-cored hlau yuav xav tau ntxiv flux thaum lub sij hawm kho tej hauj lwm, tshwj xeeb tshaj yog thaum nto oxidized los yog sib koom geometry txwv tsis pub ntub dej. Qhov ntxiv flux yuav tsum nyob twj ywm nrog cov seem uas twb muaj lawm thiab cov txheej txheem ntxuav. Tsis txhob xav tias tag nrho cov xaim muaj tib yam kev ua haujlwm flux, cov ntsiab lus halide, residue cwj pwm, lossis kev tu kom huv.
Cov kev txwv loj
Kev tuav tes soldering yog rhiab rau cov txheej txheem neeg teb xov tooj, hlau- cov lus qhia, lub sijhawm sib cuag, muaj peev xwm ua kom sov, xaim pub, thiab nkag mus rau qhov sib koom ua ke. Cov khoom siv Robotic txhim kho kev rov ua tau zoo dua tab sis tseem xav tau txoj kab uas hla txoj kab uas hla, pub kev pab cuam, cov lus qhia geometry, kev npaj kho, thiab kev sib koom ua ke.
Cov xaim hlau tuaj yeem kho cov pob qij txha SMD ib leeg, tab sis nws tsis hloov cov kev tswj hwm kev sib txuas ntawm cov khoom siv tshuaj pleev xim rau hauv ntim SMT ntau lawm.
Thaum xaiv Solder Bar
Solder bar muab cov hlau uas siv los tsim lossis rov ua dua lub molten solder da dej. Nws yog feem ntau ntxiv rau cov khoom siv yoj soldering, dip systems, solder pots, thiab qee lub tshuab xaiv soldering.
Cov ntawv thov zoo tshaj plaws
- Wave soldering ntawm los ntawm- qhov thiab sib xyaw- thev naus laus zis sib dhos
- Dip soldering ntawm terminals, leads, los yog me me sib dhos
- Rov qab tinning ntawm hlau xaus los yog cov khoom ua
- Solder- cov txheej txheem lauj kaub thiab cov kav dej
- Tshuab reservoir uas yuav tsum tau loj ntim ntawm molten alloy
Bar solder muaj txiaj ntsig zoo rau cov txheej txheem uas xav tau qhov ntim ruaj khov ntawm cov hlau molten, tab sis nws tsis yog tsim rau cov ntsiab lus meej - los ntawm - taw tes tso rau ntawm SMT pads.
Lub Bar tsuas yog ib feem ntawm cov txheej txheem
Wave thiab dip soldering ib txwm siv ib daim ntawv thov flux cais. Qhov tshwm sim yog nyob ntawm kev xaiv flux, preheat, solder kub, tiv tauj lub sijhawm, pawg thawj coj saib thiab cov khoom tiav, kev teeb tsa conveyor, thiab da dej. Cov lus qhia rauyoj soldering fluxpiav qhia lub luag hauj lwm ntawm flux ua ntej lub rooj sib txoos ncav cuag lub vuam yoj.
Lub da dej kuj xav tau kev tswj hwm rau oxidation, dross, yaj hlau, thiab cov kab mob kis tau los ntawm cov khoom siv thiab cov laug cam. Saib xyuas lub ntsiabsolder bar ua haujlwm ceev fajthiab cov txheej txheem siv losntsuas qhov kev ua tau zoo ntawm solder barua ntej hloov cov hlau los yog cov khoom siv ntxiv.
Yuav Ua Li Cas Xaiv Txoj Cai Solder Form
1. Pib nrog txoj kev xa khoom
- Yog hais tias solder yog tso ua ntej tag nrho cov sib dhos yog rhuab, pib nrog muab tshuaj txhuam.
- Yog hais tias solder yog pub rau hauv ib qho kev sib koom ua ke, pib nrog hlau.
- Yog tias qhov sib koom ua ke hu rau lub da dej molten lossis yoj, pib nrog bar.
Qhov kev txiav txim thawj zaug no muaj txiaj ntsig ntau dua li kev sib piv cov npe alloy ib leeg.
2. Sib piv cov khoom thiab sib koom ua ke
Dense SMT sib dhos feem ntau xav tau muab tshuaj txhuam thiab rov ua dua. Siv tau los ntawm - qhov sib koom ua ke, cov khoom sib txuas, thiab kev txiav cov xaim tuaj yeem ua rau cov xaim. Rov ua dua los ntawm - qhov ntau lawm tuaj yeem haum rau nthwv dej lossis xaiv cov soldering, qhov twg bar solder muab cov molten reservoir.
Joint geometry kuj cuam tshuam cov specification. Cov apertures zoo yuav xav tau ntau hom tshuaj txhuam hmoov, thaum cov terminals loj tuaj yeem xav tau ib txoj kab uas hla thiab cov cua sov uas muaj peev xwm muab cov hlau nplaum txaus thiab thermal zog.
3. Xav txog Volume thiab Automation
Kev ntim ntau lawm tsis txiav txim siab daim ntawv los ntawm nws tus kheej, tab sis nws hloov txoj kev xa khoom pheej yig tshaj plaws. Ob peb daim qauv kev sib koom ua ke tuaj yeem raug soldered manually. Pua pua ntawm SMT deposits nyiam luam ntawv thiab reflow. Rov ua dua los ntawm - qhov sib koom ua ke tuaj yeem ua pov thawj yoj lossis cov khoom siv xaiv.
4. Txhais cov Flux thiab ntxuav cov kev xav tau
Paub meej tias cov txheej txheem yuav tsum tsis muaj - huv, dej-soluble, halogen{2}}dawb, lossis lwm qhov system flux validated. Tshawb xyuas cov kev txwv qhov seem, corrosion lossis hluav taws xob kev ntseeg tau, thiab seb yuav tsum tau ntxuav li cas.
Muab tshuaj txhuam nws tus kheej lub tsheb flux, flux-cored xaim xaim xaim los ntawm cov xaim, thiab bar solder feem ntau ua haujlwm nrog cov flux cais. Cov ntawv sau cov ntaub ntawv yuav zoo ib yam, tab sis lawv cov rheology, ua kom, residue, thiab tus cwj pwm xa khoom tsis sib npaug. Siv cov ntawv thov thiab kev ntseeg siab rauxaiv txoj cai solder flux.
5. Xaiv cov Alloy thiab lees paub ua raws
Tom qab txheeb xyuas daim ntawv thiab cov tswv yim flux, sib piv cov alloy melting cwj pwm, txheej txheem kub, tivthaiv rhiab heev, sib koom kev ntseeg, nqi, thiab kev cai tswj. Cov lus qhia rauCommon tin solder alloys rau PCB los ua ketuaj yeem pab txhim kho kev sib piv kev sib tw.
Lead-dawb thiab lead-cov khoom yuav tsum tsis txhob xaiv los ntawm tus cwj pwm lossis lub ntsiab lus melting nkaus xwb. Kev ua lag luam, pawg khoom, kev zam, cov neeg siv khoom tshwj xeeb, thiab cov kev cai lij choj yuav tsum raug kuaj xyuas. Rau cov khoom muab tso rau hauv kev ua lag luam nyob sab Europe, sab laj nrog European Commission cov ntaub ntawv ntawm lubRoHS Cov Lus Qhia. Qhov sib piv ntawmtin solder vs txhuas soldermuab cov ntaub ntawv ntxiv - xaiv cov ntsiab lus, tab sis kev soj ntsuam xyuas yuav tsum ua kom tiav rau cov khoom tshwj xeeb.
Peb Lub Tswv Yim Sib Tham Scenario
SMT Prototype nrog Ob Los Ntawm -Qhov Txuas Txuas
Siv cov tshuaj pleev xim rau cov ntaub qhwv SMD thiab rov ua dua qhov chaw -mount cov khoom. Txhim kho qhov dhau los ntawm - qhov txuas txuas nrog cov xaim hlau, tom qab ntawd siv cov xaim thiab cov khoom siv sib txuas ua ke rau qhov chaw kov- nce.
Mixed SMT thiab Los ntawm -Lub Rooj Tswjhwm Saib Xyuas Lub Tshuab

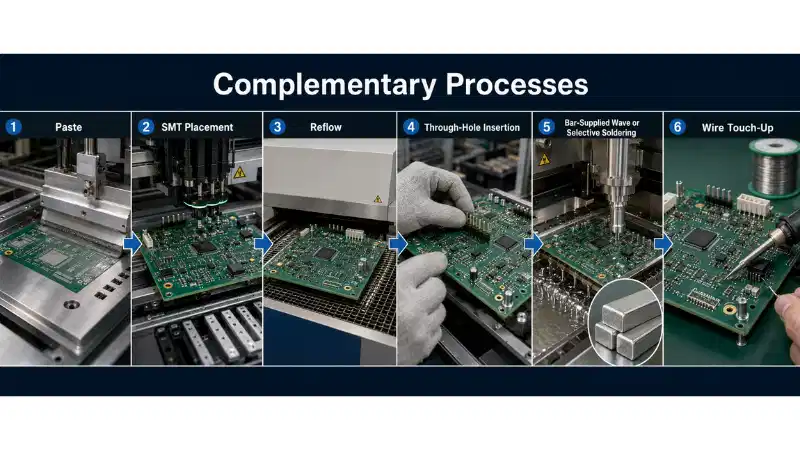

Cov kab ntau lawm tuaj yeem luam tawm cov tshuaj txhuam hniav, qhov chaw thiab rov ua cov khoom SMT, ntxig los ntawm - qhov chaw, solder lawv nrog nthwv dej los yog cov txheej txheem xaiv muab los ntawm bar solder, thiab ua tiav nrog xaim rau kev tshuaj xyuas kov -up. Muab tshuaj txhuam, bar, thiab xaim yog ntxiv rau hauv cov haujlwm no ntau dua li kev sib tw hloov pauv.
Rov qab xaim-Xaum Tinning
Rau ntau cov xov hlau xaus, lub tshuab hluav taws xob tswj hluav taws xob tau muab nrog cov khoom siv hluav taws xob tuaj yeem ua haujlwm zoo dua li kev pub xaim mus rau txhua qhov kawg. Cov txheej txheem tseem xav tau qhov tseeb flux, lub sij hawm raus dej, da dej kub, tswj kev sib kis, thiab cov txheej txheem kev nyab xeeb.
Kev xaiv yuam kev
- Xaiv los ntawm lub npe alloy ib leeg:tib lub nominal alloy tsis ua paste, hlau, thiab bar interchangeable.
- Xav tias txhua yam khoom muaj flux:muab tshuaj txhuam muaj lub tsheb flux, ntau cov xov hlau yog flux-cored, thiab cov tuav ib txwm cia siab rau cov flux cais.
- Siv hlau los ua ib qho kev hloov SMT ntau lawm:xaim tuaj yeem kho cov pob qij txha hauv zos tab sis tsis tuaj yeem rov tsim cov kev tswj hwm kev tso nyiaj hla ib tus qauv stencil.
- Khiav ib tug solder da dej yam tsis muaj kev tswj muaj pes tsawg leeg:Qhov kub thiab txias, oxidation, dross, yaj hlau, thiab kev siv ntxiv tuaj yeem hloov cov txheej txheem.
- Tsis quav ntsej residue compatibility:hloov daim ntawv solder kuj tuaj yeem hloov pauv qhov flux chemistry thiab kev tu kom huv.
- Luam theej lwm txoj kab teeb tsa:khoom siv, stencil, board tiav, tivthaiv geometry, thermal mass, thiab throughput yuav xav tau ntau yam tsis.
FAQ
Q: Puas tuaj yeem muab cov hlau nplaum hloov pauv?
A: Nws tuaj yeem siv rau tus kheej SMD pob qij txha, qauv qauv, lossis kho, tab sis nws tsis yog qhov hloov pauv tau zoo rau stencil- luam tawm muab tshuaj txhuam hauv ntim SMT sib dhos. Muab tso rau hauv cov khoom siv tswj cov khoom ntim ntawm ntau cov ntaub qhwv ua ntej rov qab.
Q: Puas tuaj yeem muab tshuaj txhuam siv nrog cov hlau nplaum?
A: Nws tuaj yeem siv rau hauv kev xaiv kho lossis cov qauv qauv, tab sis cov cua sov tswj tau tsawg dua li cov txheej txheem reflow uas tau lees paub. Paste ntim, flux activation, residue, thiab tivthaiv kub yuav tsum tau tswj.
Q: Puas yog solder bar muaj flux?
A: Txheem hluav taws xob bar solder feem ntau yog cov khoom siv hlau. Wave thiab dip txheej txheem ib txwm siv flux nyias. Ib txwm txheeb xyuas cov ntaub ntawv cov khoom tshwj xeeb thiab cov lus qhia txheej txheem.
Q: Puas yog ib qho hlau tuaj yeem muab tshuaj txhuam, xaim, thiab bar?
A: Ntau tsev neeg hlau muaj nyob rau hauv ntau hom. Cov khoom lag luam tseem siv cov tshuab flux sib txawv, kev tsim khoom, kev ntim khoom, thiab cov txheej txheem kev siv, yog li lawv cov kev khiav hauj lwm tsis tuaj yeem raug xa ncaj qha.
Q: Daim ntawv twg yog qhov zoo tshaj plaws rau kev dhau los ntawm - qhov khoom?
A: Siv cov hlau nplaum rau phau ntawv los yog neeg hlau taw tes soldering. Siv cov khoom siv hluav taws xob thaum lub rooj sib txoos ua tiav los ntawm kev tswj yoj, plam, lossis solder- lub lauj kaub.
Q: Daim ntawv twg yog qhov zoo tshaj rau PCB rework?
A: Cov xaim hlau yog ib txwm siv los ntawm - qhov thiab kho qhov taw tes. Muab tshuaj txhuam yuav pab tau thaum hloov ib qho SMD tivthaiv thiab cov hlau ntxiv yuav tsum tau muab tso rau ntawm ob peb lub ncoo. Qhov kev xaiv kom raug yog nyob ntawm cov khoom siv geometry, cov khoom siv uas twb muaj lawm, cov khoom siv hluav taws xob, thiab cov khoom siv flux compatibility.
Cov ntaub ntawv los npaj ua ntej thov kev pom zoo
- Cov txheej txheem sib dhos thiab cov khoom siv muaj
- SMT, dhau los ntawm- qhov, txuas, davhlau ya nyob twg, lossis xaim-cov ntsiab lus sib koom
- Cov khoom me me tshaj plaws, stencil aperture, lossis sib koom geometry
- Nyiam alloy lossis kev cai txwv
- Flux kev faib tawm thiab kev tu kom huv
- Ntau lawm ntim thiab qib automation
- PCB thiab cov khoom tiav
- Cov teeb meem tam sim no lossis cov txheej txheem txwv
- Kev ntseeg tau, cov neeg siv khoom, thiab kev ua lag luam xav tau
Daim ntawv solder kom raug yuav tsum haum rau txoj kev xa khoom ua ntej. Muab tshuaj tiv thaiv kev tso nyiaj ua ntej reflow, xaim txhawb ib tus neeg cov pob qij txha rhuab, thiab bar txhawb molten- txheej txheem da dej. Thaum qhov kev xaiv ntawd meej meej, cov alloy, flux, ntim, thiab txheej txheem qhov rai tuaj yeem raug teev kom raug.
Los tham txog kev sib dhos PCB lossis txheej txheem soldering,xa koj cov kev cai sib dhos, suav nrog cov khoom siv, kev nyiam alloy, flux lossis tu yuav tsum tau ua, ntim ntau lawm, thiab qhov teeb meem tam sim no.
